TOPIC:

Now it is showing different status of drbd

[root@xenserver-61 ~]# service drbd status
drbd driver loaded OK; device status:
version: 8.4.3 (api:1/proto:86-101)
srcversion: FB3AC7056350AC64629E395
m:res cs ro ds p mounted fstype
1:iscsi1 Connected Primary/Secondary UpToDate/UpToDate C
2:iscsi2 Connected Primary/Secondary UpToDate/UpToDate C

But still i am not able to find iscsi2 LUN in Xencenter.

I thought I responded to this yesterday. It looks like you're up to date now - both sets of drives are in sync. A reboot may help get everything working now.

Hello! I have two iscsi storage, all works good, but I think something is wrong. pvs output looks like this:
File
PV VG Fmt Attr PSize PFree
/dev/sdd VG_XenStorage-193d8cd4-4a37-d65e-c5d1-ccb924a37c2b lvm2 a-- 1.78t 1.78t
/dev/sde VG_XenStorage-24306250-a5f6-f316-2127-a0a554bc0cb0 lvm2 a-- 931.47g 931.47g

/dev/sdd and /dev/sde are physical devices of /dev/md2 raid, which is a part of /dev/drbd1 and iscsi1
/dev/sda is a second single disk storage, which is part of a /dev/drbd2 and iscsi2
LVM filter is
filter = [ "r|/dev/xvd.|", "r|/dev/VG_Xen.*/*|", "r|/dev/md2|", "r|/dev/drbd1|", "r|/dev/sda|", "r|/dev/drbd2|" ]

So if I losing iscsi1 then I auto losing iscsi2. How I should correct this?

HI Bell,

After reboot I am not able to find any of the LUN in xencenter.

HI,

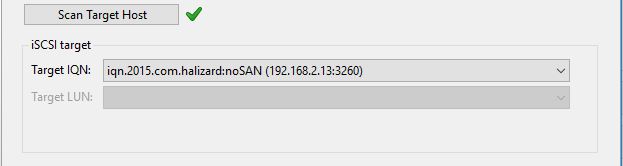

I have reinstall the XenServer 7 and also reinstall the halizard_nosan_installer_2.1.3 Done the config for second iscsi Also, but while adding second iscsi from xencenter its not showing the LUN of second ISCI bellow is the output of "

iscsi-cfg status"

Please suggest ?????

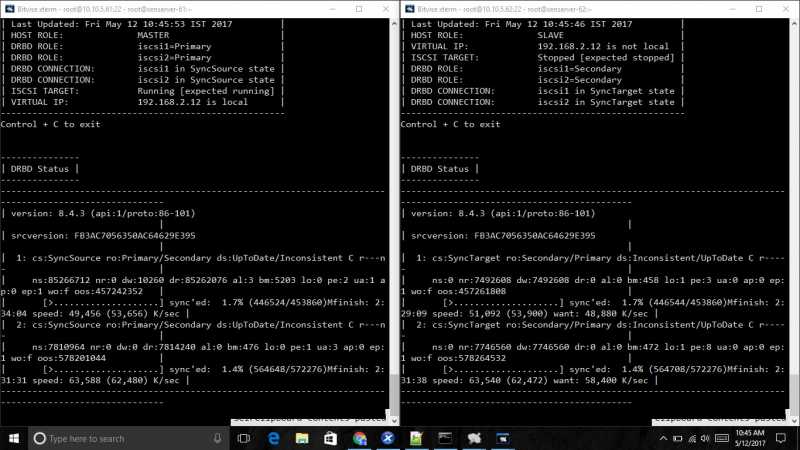

I don't see anything wrong in the screenshots, although it's a lot easier to read the console output if you stretch out the windows so they don't linefeed.

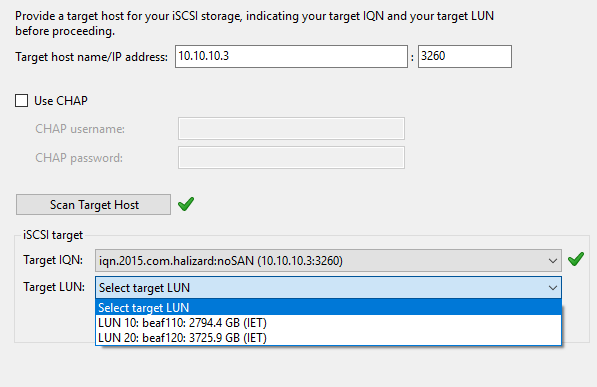

It looks like you already set up the storage at LUN10. There isn't anything else in the Target LUN dropdown?
